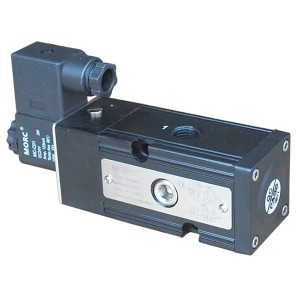

Double electric control Solenoid Valve MC50 3/2 way or 5/2 way

Double electric control Solenoid Valve MC50 3/2 way or 5/2 way

Short Description:

MC50 Series Solenoid Valve MC50 series products are solenoid valves manufactured by MORC company. There are dozens of product types to provide users with different occasions. The MC50 series is a pilot operated pneumatic solenoid valve, to be used in pneumatic valve switching control.


Product Detail

Product Tags

Characteristics

Adopt pilot-oriented structure.
Adopt universal type valve body design, both 3/2 way and 5/2 way use one valve body; 3/2way normally closed.
Adopt NAMUR installation standard, which makes it can easily connect with actuator, also can connect through pipe.
Valve spool with sliding column structure, which makes it good sealing and sensitive action.
With low start air pressure, long life span.
With manual device and can handle manually.
Aluminum or stainless steel body material is optional.


Technical Parameters

MODEL

MC50-XXN

MC50-XXM

MC50-XXD

MC50-XXA

Rated Voltage

12/24/48±10%VDC; 110/220/240V±10%VAC

24VDC

Power

AC:4.5VA ; DC:3W

AC:5.0VA ; DC:3.5W

1.0W

Insulation

F Class

Protection

IP65

IP66

IP65

Explosion-proof

-

ExmbII T4

ExdIICT6
DIPA20 Ta,T6

ExiaIICT6

Supply Pressure

0.15~0.8MPa

Orifice Area / Cv

25mm²/1.4
