Excellent quality Pneumatic Spring Return Control Valve - Pneumatic control valve single seat – Hoyee Detail:
Pneumatic control valve Use and characteristics
1 applications and characteristics of pneumatic control valve structure of a right angle turn, it is supporting the use of valve positioner, the ratio can be adjusted; type V valve adjustment for a variety of occasions, with a rated flow coefficient, adjustable ratio, good sealing effect, regulating the performance of sensitive, small volume, vertical horizontal installation. Applicable to control of gas, steam, liquids and other media.
2 Pneumatic control valve characteristic: the structure of a right angle turn, by the V type valve, pneumatic actuator, positioner and other accessories; there is a nearly 100 than the inherent flow characteristics; dual bearing structure, the starting torque is small, with excellent sensitivity and speed sensors; shear capacity of strong.
3 pneumatic piston executing agency for the use of compressed air power source, through the piston’s movement led to a 90 degree turn, to enable the automatic gate valve. Its components are: adjustment bolt, the executive body box, crankshaft, cylinder block, cylinder, piston, connecting rod shaft, cardan shaft.
4 the working principle of pneumatic control valves: pneumatic control valve by the implementing agencies and regulatory agencies. Executing agency is the thrust control valve components, which according to the control signal pressure to produce the thrust, push the adjustment mechanism of action. Valve is a pneumatic control valve adjustment parts, it has a direct contact with the media regulator, regulating the flow of the fluid.
Main technical specification
|
Nominal Diameter(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
|
Rated flow coefficient Kv |
Equal percentage |
3 |
6 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
|
Liner |
4 |
7 |
11 |
18 |
28 |
44 |
69 |
110 |
176 |
275 |
440 |
690 |
|
|
Actuator Model |
Direct action |
PZMA-4 |
PZMA-5 |
PZMA-6 |
PZMA-7 |
||||||||
|
Reaction |
PZMB-4 |
PZMB-5 |
PZMB-6 |
PZMB-7 |
|||||||||
|
Rated Stroke L(mm) |
16 |
25 |
40 |
60 |
|||||||||
|
Diaphragm Effective Area |
280 |
400 |
600 |
1000 |
|||||||||
|
Nominal Pressure PN(MPA) |
1.6 2.5 4.0 6.3 10.0 |
||||||||||||
|
Inherent flow Characteristics |
Equal percentage、Liner |
||||||||||||
|
Inherent rangeability |
50:01:00 |
||||||||||||
|
The range of air source signals |
20~100、40~200、80~240 |
||||||||||||
|
Gas source pressure(Mpa) |
0.14、0.25、0.28、0.4 |
||||||||||||
|
Electric actuator |
Depand on the thrust and stroke which valve need |
||||||||||||
|
Power voltage |
220V.AC 50Hz 380V.AC 50Hz( Three phase) |
||||||||||||
|
Leakage class |
Soft seal |
VI Class、Zero Leakage |
|||||||||||
|
Metal seal |
IV Class、V Class |
||||||||||||
|
Flange connection form |
PN1.6Mpa, Convexity of valve body PN≥4.0Mpa,Concavity of valve boday |
||||||||||||
|
Upper bonnet form |
Standard type |
Case Steel:-20~220°C、Cast Stainless steel:-40~220°C |
|||||||||||
|
Cooling type |
Case Steel:-29~425°C、Cast Stainless steel:-60~450°C |
||||||||||||
|
Cryogenic |
Cast Stainless steel:-60~-100°C、-100~-196°C |
||||||||||||
Main Performance Index
|
No |
Item |
Standard Type |
Cooling、cryogenic type |
|
1 |
Intrinsic Error＜（%） |
±1 |
±3 |
|
2 |
Return difference＜（%） |
1 |
3 |
|
3 |
Dead band＜（%） |
0.4 |
1 |
|
4 |
Origin-destination deviation＜（%） |
±1 |
±2.5 |
|
5 |
Rated stroke deviation＜（%） |
+2.5 |
+2.5 |
Our Advantage
1. 15 years of experience of valves
2. Consistent product quality and reduction of defective productivity
3. Significant cost reduction versus competitors
4. 1 year of warranty time
Q: Are You Trading Company Or Manufacturer ?
A: We are factory.
Q: How Long Is Your Delivery Time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do You Provide Samples ? Is It Free Or Extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What Is Your Terms Of Payment ?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

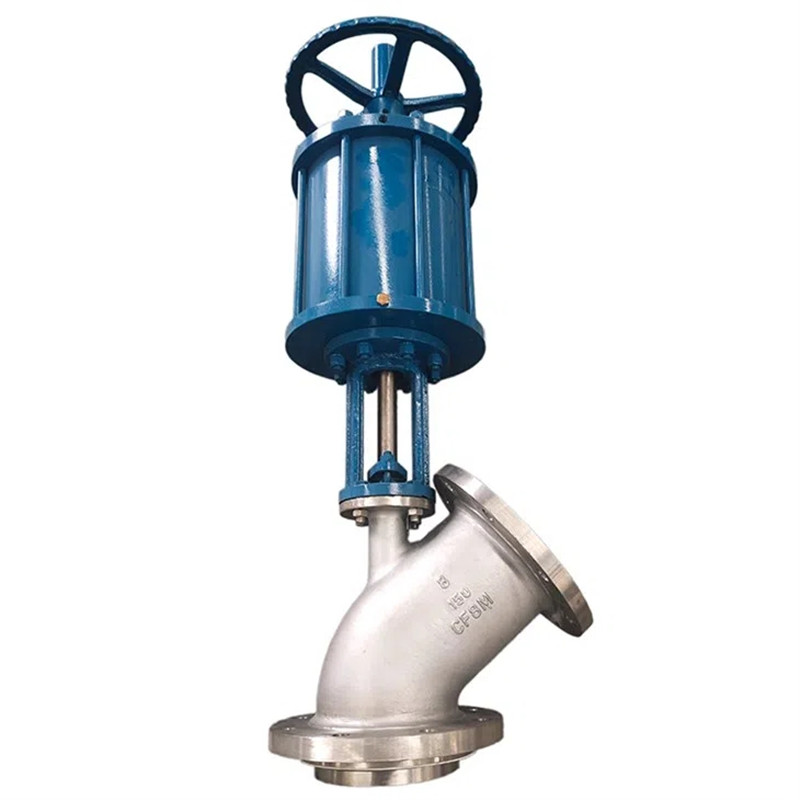

Product detail pictures:
