OEM Supply Electric Control Flow Control Valve - Electric three way control valve – Hoyee Detail:

Three way electric control valve actuator specification

Electric 3-way control valve Type Method	Electric actuator
	3810L series
	Intelligent integrated type
Usage	Regulating
Air supply pressure or Power supply voltage	Power: AC 200V±10% 50Hz Or Power: AC 380V±10% 50Hz
Connector	Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞)
Direct action	Input signal increase, stem descend, valve close.
Reaction	Input signal increase, stem ascend, valve open.
Input signal	Input/output4～20mA.DC
Lag	≤0.8%FS
Linear type	≤+1%FS
Environmental temperature	Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃
Electric 3-way control valve Accessories	Space heater (normal type) Non-standard accessories, need special customized notes.

Three way control valve technical parameter

Nominal Diameter DN (mm)		25	32	40	50	65	80	100	125	150	200
Rated Flow Factor (KV)	Confluence	8.5	13	21	34	53	85	135	210	340	535
	Distributary	8.5	13	21	34	53	85	135	210	340	535
		Can be Instead by Confluence System
Rated Stroke L (mm)		16	25			40			60
Diaphragm Active Area Ae (c m 2 )		280	400			600			1000
Nominal Pressure PN (Mpa)		1.6 4.0 6.4
Inherent Flow Characteristic		Straight Line, Parabola
Inherent Adjustable Rate R		30
Working Temperature t( °C )		Common:Cast Iron -20 ~ 200 Cast Steel -40~250 Cast Stainless Steel -60 ~ 250 Heat Dissipation:Cast Steel -40 ~ 450 Cast Stainless Steel -60~450
Two Media Temperature Difference t( °C )		Cast Iron≤ 150 Cast Steel, Cast Stainless Steel≤ 200
Sign Range Pr(kPa)		40~200
Bleed Pressure Ps(MPa)		0.14~0.4
Permit Leakage Rate		10 -4 X Valve Rated Capacity
Permit Pressure Distance P(MPa)		0.86	0.75	0.48	0.31	0.27	0.18	0.11	0.12	0.09	0.05

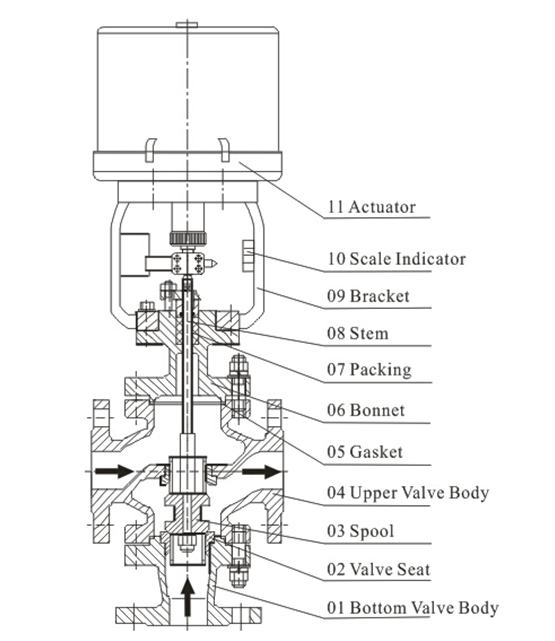

Three way electric control valve structure

Electric three way contr (

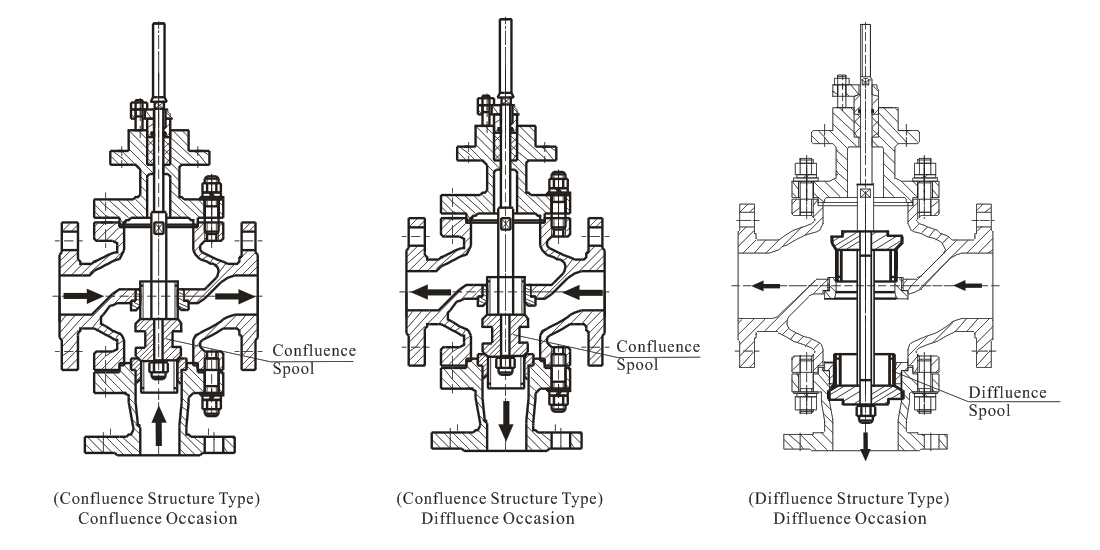

Three way electric control valve flow direction

Electric three way contr (1)
