Limit switch for indicating OPEN / CLOSE position of valve position local and remote

Short Description:

MLS800 / MLS800-S series limit switch is applied for indicating OPEN / CLOSE position of valve position local and remote. The IP grade is IP67. Non-explosion and Explosion-proof type are selectable.

Send email to us

Product Detail

Product Tags

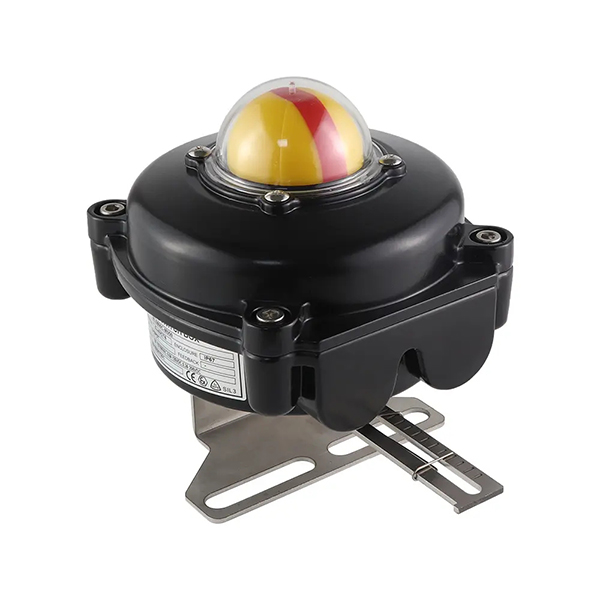

MLS800 / MLS800-S Series Limit Switch （Linear Type）

MLS Series Limit Switch is consistent with IP Protection standard, ISO5211 standard and Namur standard. The shell mainly include impact type, standard type, explosion proof type and stainless steel type; Mechanical switch, proximity switch are selectable for switch specification, which provide users with safety, high-quality and reliable automatic products.

MLS800 / MLS800-S series limit switch is applied for indicating OPEN / CLOSE position of valve position local and remote. The IP grade is IP67. Non-explosion and Explosion-proof type are selectable. It can be built in with a variety of switched. Material for MLS800 is Aluminum Alloy. Material for MLS800-S is SS316L.

Characteristics

With two dimensional indicators, which can indicate the valve position with full angle.

In line with Namur standard to realize the max.interchangeablity.

With anti-off bolt in the upper cover to prevent falling off when disassembled.

The default shell material is die-cast aluminum alloy, with polyester coating; SS316L material is selectable.

With double wire interface, other standards are selectable.

Multiple contact terminal row, terminal blocks with 8 standard contacts. Multiple terminals are optional.

The spring loaded can be debugged without extra tools.

Technical Parameters

ITEM / MODEL		MLS800	MLS800-S
Body Material		Aluminum	SS316L
Paintcoat		Polyester powder coating	-
Cable Entry		2-NPT3/4”	2-NPT3/4”
Terminal Blocks		8 points	6 points
Enclosure Grade		IP67
Explosion Proof		Non-explosion / ExdIICT6	ExdIICT6
Stroke		10 to 100mm
Ambient Temp.		-20 to 70℃
Switches		SPDT2 / Proximity Switch2
Switch Specification	Mechanical Switch	16A 125VAC / 250VAC, 0.6A 125VDC 10A 30VDC
		0.6A 125VDC
		10A 30VDC
	Proximity Switch	Intrinsically safe: 8VDC, NC
		None explosion: 10 to 30VDC, ≤150mA
Position Transmitter		4 to 20mA, with 24VDC Supply
